Full-Track Power Trowels

Exclusive to Oriem, our Full-Track walk behind power trowels will put you on the right track!

ACHIEVE A FLATTER FINISH

Full-track has the ability to get a much flatter concrete finish in less time than a standard power trowel.

BELGIUM DESIGN

Full-Track holds the blades firmly in place without any flexing when the pitch is adjusted. Plus, you can adjust and vary speed and RPM when it’s needed.

CHANGE BLADES QUICKLY

Change blades, quickly, seamlessly and safely. No need

CE STANDARD

Full-Track is a patented design. Built by concreters for concreter’s all Full-Track power trowels are design for safety and longevity.

Our Range

32 INCH/80CM POWER TROWEL WITH HONDA GX200 MOTOR

36 INCH/90CM POWER TROWEL WITH HONDA GX270 MOTOR

48 INCH/120CM POWER TROWEL WITH HONDA GX390 MOTOR

Why Choose Full-Track?

HOW FLAT? MORE FLAT!

The patented Full-Track blade system makes the concrete surface flatter.

  • Specially designed for the variable speed clutch allows for a higher blade speed (up to 200rpm) and more convenient operation.

  • Changing blades is more convenient with the Single-Bolt Blade Assembling System.

  • Double-Safety System of European Safety Standards provides more security as the Full-Track exceeds safety regulations.

HOW RIGID IS RIGID?

More Attention to Detail

  • All Full-Track Trowels have a Shock Absorber System under the engine which reduces most of the vibration produced by the engine and ensures the quality of the trowelling process.

  • The Full-Track System uses a rigid adjustment pitch control instead of the traditional cable to avoid angle changes of the blade.

QUALITY MATERIALS ONLY

Top-ranking material, excellent manufacturing and quality design create the Full-Track difference.

  • The handle is made of best quality stainless steel and is completely maintenance free.

  • The Safety Ring is of special powder coating to avoid water and rust.

  • The black chemistry process is used on materials to harden the spider arm and avoid rust.

  • Blades are made of high-quality spring steel and has a longer life span. (Up to 3000-4000 M2)

Full-Track Features

  • Full-Track has a PATENTED Spider Attachment Arm with the Stabilizer Ring mounted to the top of each arm.

    All individual arms can not alter its own orientation alone without changing the rest of the other arms and blades.

    All of the blades utilizes the full weight of the machine that will cut out all high spots and move the excess concrete to the low spots, creating a flatter surface.

    This reduces the time required to get a flatter surface!

    Guaranteed flatter finish in far less time!

  • The Spider and Attachment arms are made of very hard steel which is wear resistant. The attachment arms are tough to bend.

    If maintained & greased routinely, there will be almost no wear and will continue to fit tightly in the swivel area so the blades will remain flat at all times.

  • With just One Bolt at the end of each Spider Arm, the blade can be easily removed, rotated or replaced. In case there is a need to use any other brand of blades in your inventory with Full-Track system, you simply fasten them to our adapters and affix them to your Full-Track machine.

    (Be aware that many other blades are not designed to withstand the Full-Track system’s higher spider rpm’s).

  • How does Full-Track save up to 20% of your concrete finishing time?

    When you are using so called 48 inches (or any other length) machine, generally attachment arms are shorter than the blade length.

    Therefore, the end of blade will flex upward and reduce the effective smoothing width.

    With Full-Track system, the elongated attachment arm supports the full length of the blade so none of the area of the blade is flexed.

    The Operator is always sure that he/she is finishing the full width or the

    Full-Track of 48 inches (or any other length). Tis is unique in the wrld of concrete trowels.

  • The torque generated by the engine through the Full-Track specially designed “Gear Box” rotates the clutches and spider arms up to a speed from 40 rpm’s to 200 rpm’s This speed far exceeds the standard units which run at 90 to 130 rpm’s maximum. The higher rotating speed combined with a better finishing blade system means flatter surfaces in a less time.

    Generally, the clutches of other trowel machines can only make their spider arms rotate at speeds up to 100 - 130 RPM maximum.

    Full-Track's special designed variable speed clutch can reach safe operating speeds up to 200 RPM which greatly reduces finishing time and operator fatigue.

    With Full-track you always minimize job time while obtaining the flattest finished surface.

  • Full-Track offers a full product line of blades with a competitive price to accommodate any job requirement. If there is a job that requires using the pan/disc, we highly recommend using our floating blades rather than a pan disc. The reason is that every pan disc must have an arch build into its structure so it can move around on the concrete surface and will not “pull the concrete up”. Our floating blades work together with the Full-Track finishing machine through its Patented Stabilizer Arm, and will ensure even a flatter surface than use of a regular pan/disc.

    In order to ensure the ability to get a flatter finishing surface, on top of our well designed blade system, comes our unique Blade Pitch Adjustment System. The Cable used by most of the traditional trowel machines which runs down through the handle bar to control blade pitch has been replaced by us with a Solid Rod System. When the blade pitch is adjusted to the proper position, it holds the blades firmly in that position and will not flex like the cable system. By holding the blades at the right operator’s settled pitch, a better and flatter finish is achieved.

    To minimize maintenance, all of our connection points in the Blade Pitch Adjustment System are enclosed and protected to prevent any cable breaking problems that typically occur.

    The optional Lifting Hook is designed to attach directly to the gear box with heavy bolts instead of attaching to the engine like others. This setup allows the operator the ease to transport the unit with lifting equipment around the construction site with any assistant without causing damage to the engine.

  • 5 year warranty for the Spider Unit.

    3 year limited warranty for the Gearbox Unit.

    1 year limited warranty for all parts of the trowel machine.

Specifications

HANDLE

Full-Track machines as standard are equipped with a strapless variable handle in altitude.

Both large and smaller users can work unforced because of this

SPIDER ARMS

A Full-Track arm is almost the same length as the Blades, so therefore declines have been minimized and the area continues to be preserved.

Full-Track arms have been eccentrically twisted, which excludes independent moving. The four arms will always move Simultaneously which results in small disparities being removed and the flatness of the floor being increased. All spiders and arms have been blackened. Oxidation on arms stuck inside the spider are avoided and therefore subject to minimum maintenance. After years of use the tolerance of the arm in the spider remains as it were at nil The work suggesting area remains unchanged.

Other Brands: Generally spider arms are 2/3 of the additional plate length.
As a result, after some use, the crossing part of the blades and arms will bend. This translates to loss of work.

CLUTCHES

Full-Track machines are equipped with a Variable Speed clutch on the engine and on the gearbox. These links ensure that both a very low and high RPM can be created without strength loss.

Depending on the speed, lower or higher variable clutches participate and therefore the engine does not give unnecessary strength.

A typical RPM amounts to 125 rpm, but Full-Track machines are adjusted to 200 rpm.

This speed results in quicker finishing of floors, which saves the entrepreneur time and money.

ENGINE

Perfectly calculated engine ensures sufficient strength.

We only use Genuine Honda motors that guarantee more power, quieter performance, lower fuel consumption & reduced emissions.

  • GX200-5.5HP

  • GX270-8.5HP

  • GX390-11.7HP

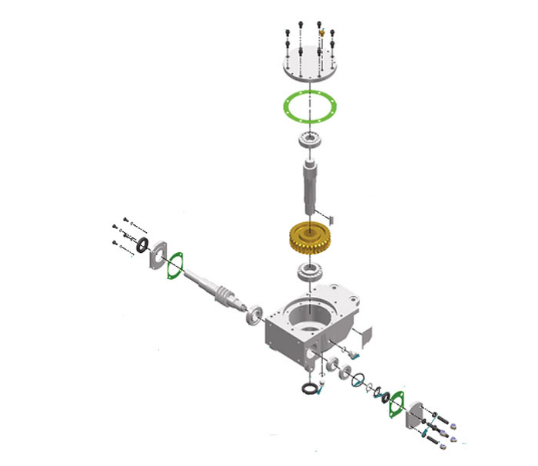

GEARBOX

Full-Track Gearbox Casts are manufactured from High-Quality Aluminium.

The layering has been calculated on all possible strengths and frictions and therefore early wear is avoided.

Internal damage breakdown services can be carried out with minimum disruption to operations.

The remuneration costs will diminish strongly because of this.
